New Holland Rotary Hay Rakes

Product Details

Product Description

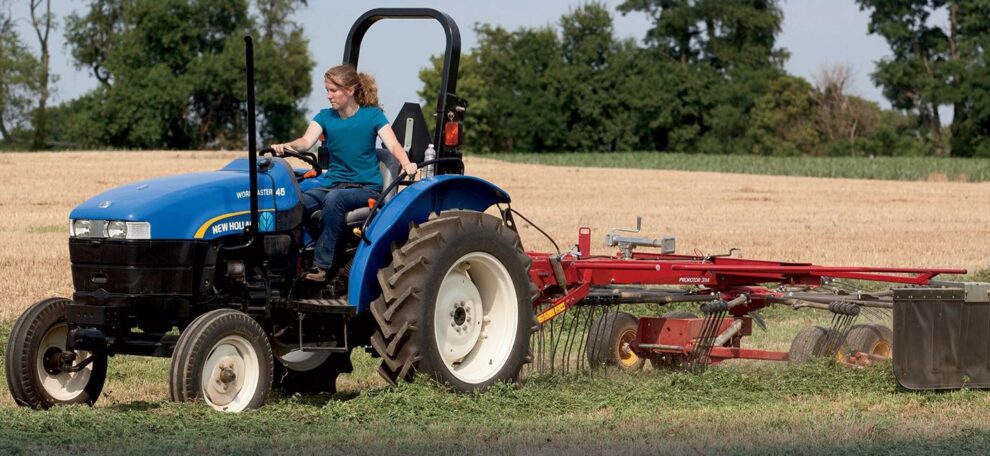

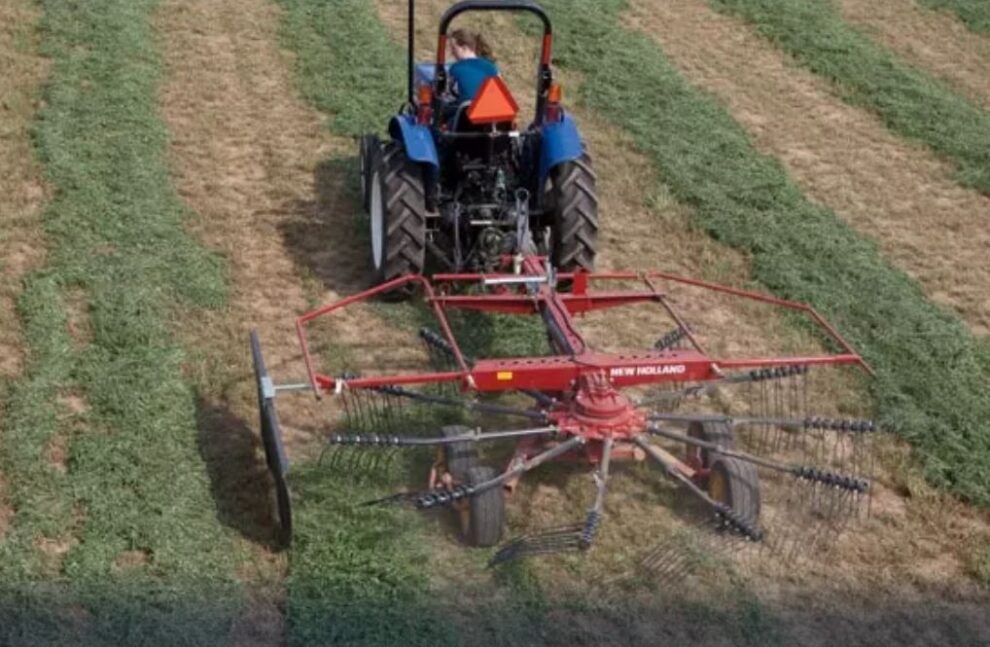

Like a mechanical pitchfork; with long flexible tines each ProRotor™ rake tine arm lifts and carries the crop delivering it into the windrow. The tines never need to touch the soil, so there is little risk of contaminants being swept into the windrow.

The rotary action builds a well-shaped windrow without roping that promotes continued drying so you can rake earlier which helps retain delicate leaves producing higher quality forage.

The consistency and shape of the rotary rake windrow feeds smoothly into all types of balers for easier baling and more uniform bales every time.

Dimensions

Varies on Model:

Length: 26.9ft

Width: 9.8ft

Weight: 1,257-3,626lbs

Rotor Diameter: 11’

Specifications

DIN Width – Sing Swath or Min (m/ft)– 4.2/13.8

Crop Delivery– Left Side

PTO Requirement– 540

PTO Type: Double Wide Angle CV

Power Requirement: 20hp

Number of Rotors: 1

Number of Arms: 4

Tine Arm Diameter: 1.4”

Tine Diameter: 0.4”

Operational Speed: 5-8.5mph

Photo Gallery

VIDEO

KEY FEATURES

CLEAN ROTARY RAKING ACTION- Like a mechanical pitchfork, each tine arm uses flexible tines to lift and carry the crop to the windrow. Unlike ground-engaging rakes, ProRotor™ tines don’t need to touch the soil, so there is less risk of contaminants being swept into the windrow. The gentle rotary action builds a well-shaped windrow without roping and promotes drying after the hay is raked.

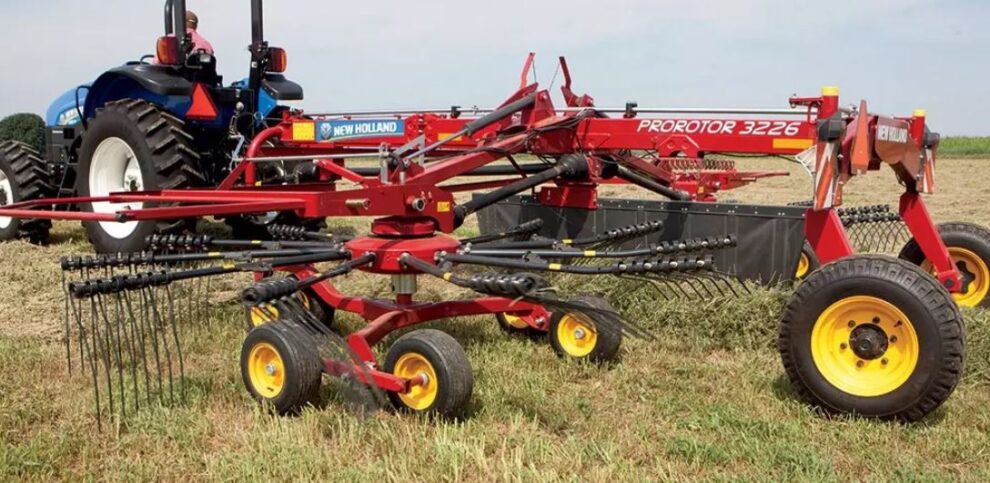

A CHOICE OF MODELS- Three ProRotor models with working widths ranging from 13’9” to 25’7” are available to suit your raking needs. Choose the ProRotor 3114 single-rotor, side-delivery rake, the ProRotor 3223 dual-rotor, side-delivery rake or the ProRotor 3226 dual-rotor, center-delivery rake.
HIGH-LIFT TINE ACTION- ProRotor tine arms are different, and that difference provides more capacity and better performance than rakes with straight or radial-mounted tine arms. ProRotor tine arms are curved and mounted at a tangent, so the tines are in optimum position to pick up and deliver hay to the windrow.
MAINTENANCE-FREE GEARBOXES- The sealed rotor gearbox is lubricated by oil and requires only periodic daily maintenance of the crown and pinion, saving you time and providing reliable service.
